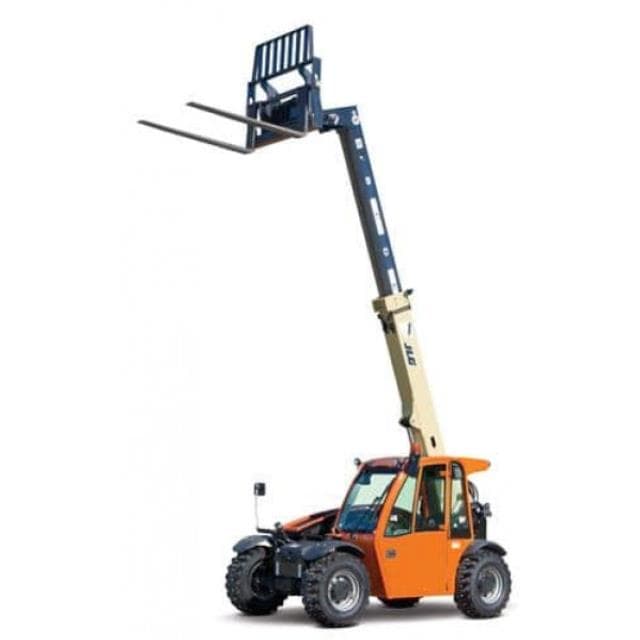

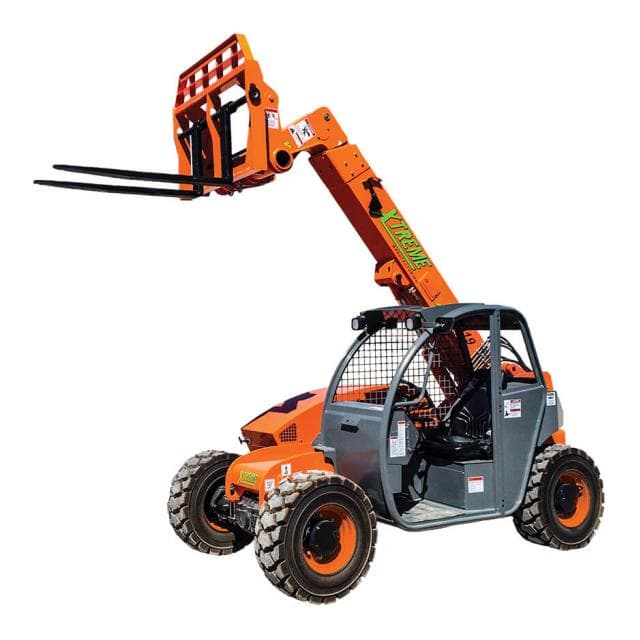

5500LB 19' FORWARD REACH FORKLIFT *DETAILED SPECS IN ATTACHMENT*
INVENTORY MODELS: GENIE 5519 : XTREME XR5919 : JLG G5-18A
GENIE:
Max lift height 19 ft
Max forward reach 11 ft
Reach @ max height 2 ft
Height, stowed 6 ft 4 in
Length, stowed w/o forks 12 ft 7 in
Width 5 ft 11 in
Max lift capacity 5,500 lbs
Lift capacity @ max height 4,400 lbs
Lift capacity @ max reach 1,900 lbs
Fuel tank capacity 15.9 gal
Weight 9,820 lbs
Forks 48"
XTREME:
Boom:
Maximum Reach: 132.0 in
Engine:
Engine Manufacturer: Deutz
Engine Model: 2.9L
Horsepower: 74 hp
Power Mode: Diesel
Performance:
Base Capacity: 5900 lbs
Lift Capacity: 5900.0 lbs
Weights & Dimensions:
Lift Height: 228 in
Maximum Lift Height: 19.0 in
Operating Weight: 11200 lbs
Overall Height: 78 in
Overall Length: 144 in
Overall Width: 71 in
