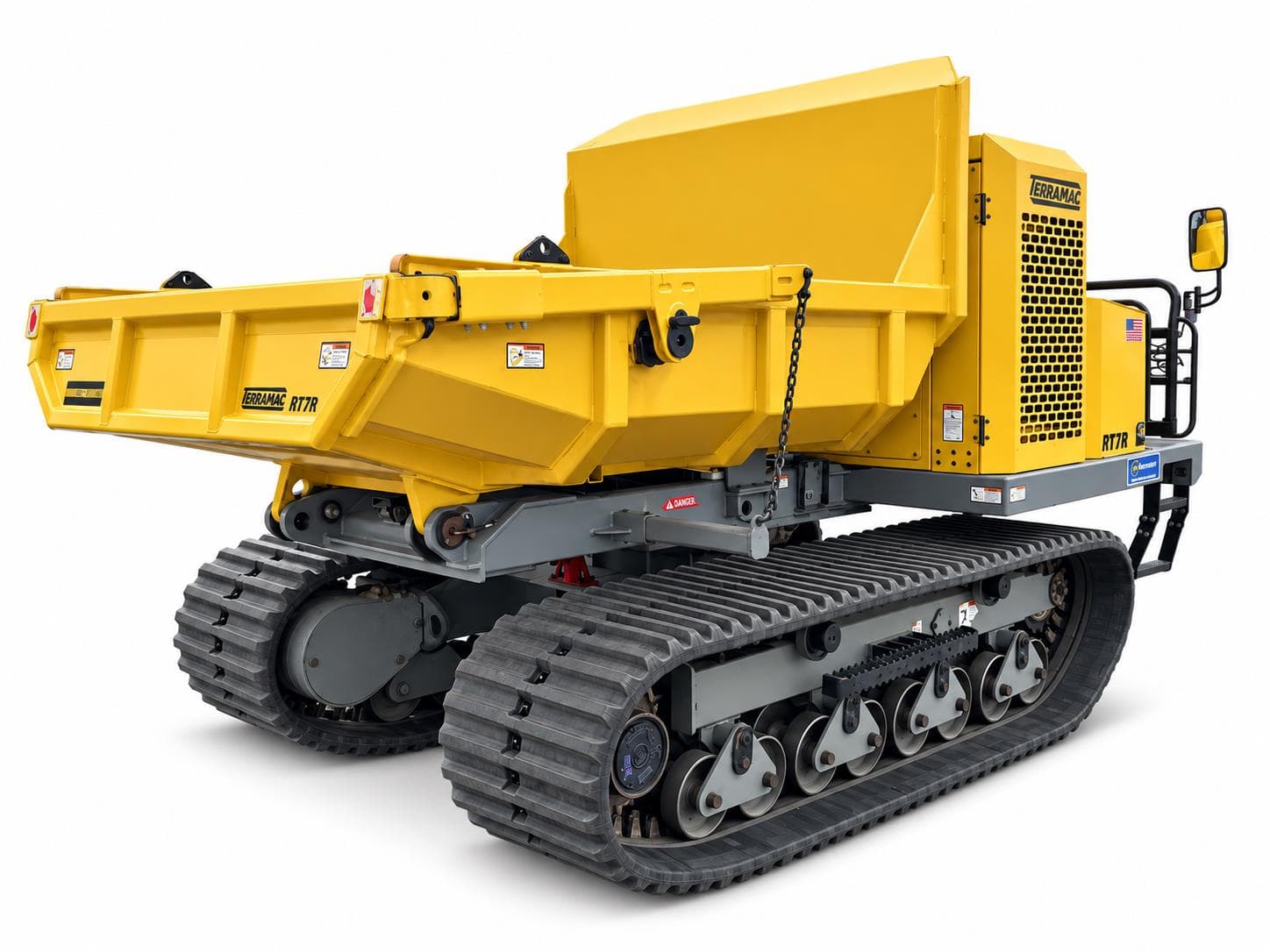

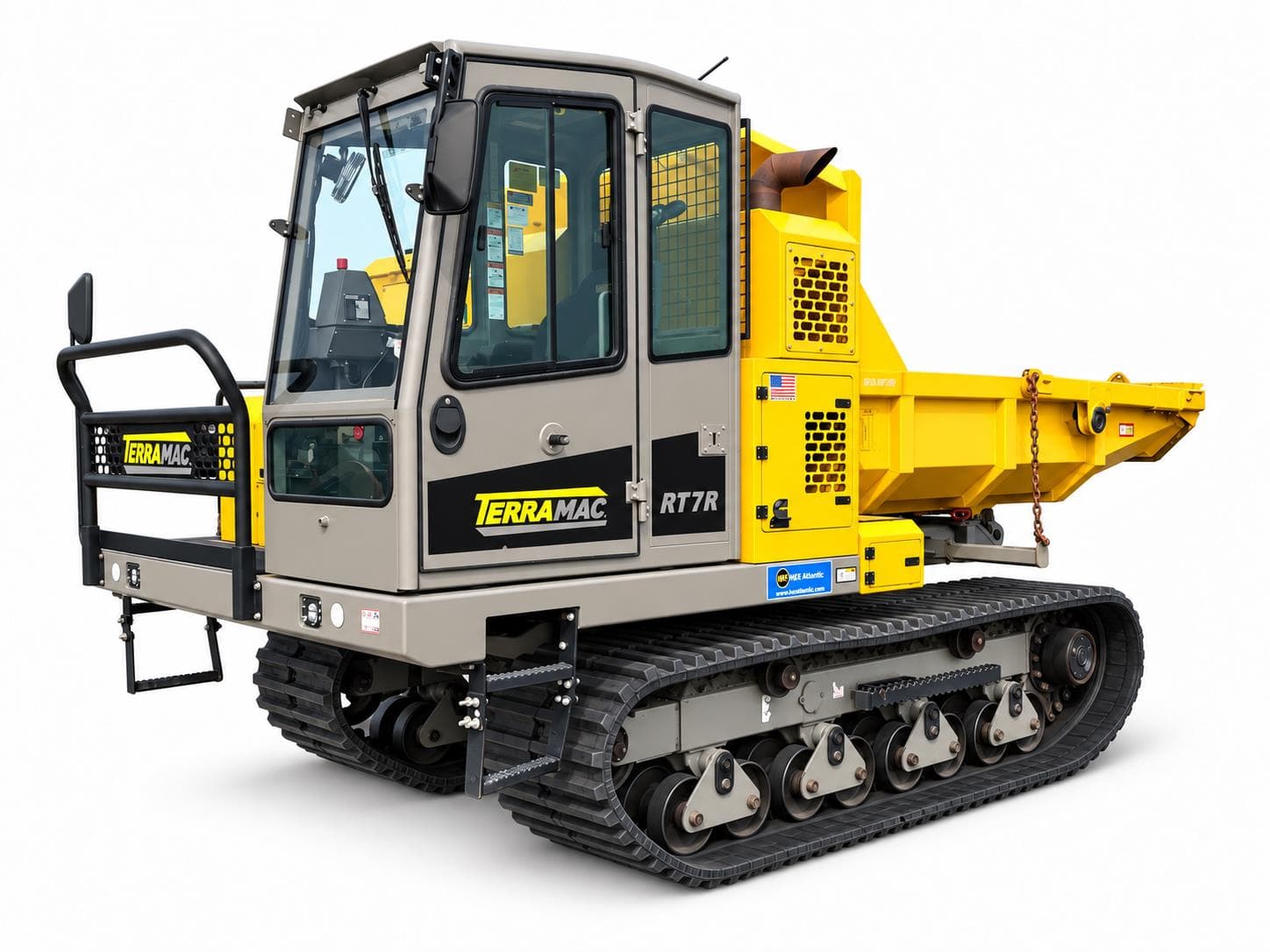

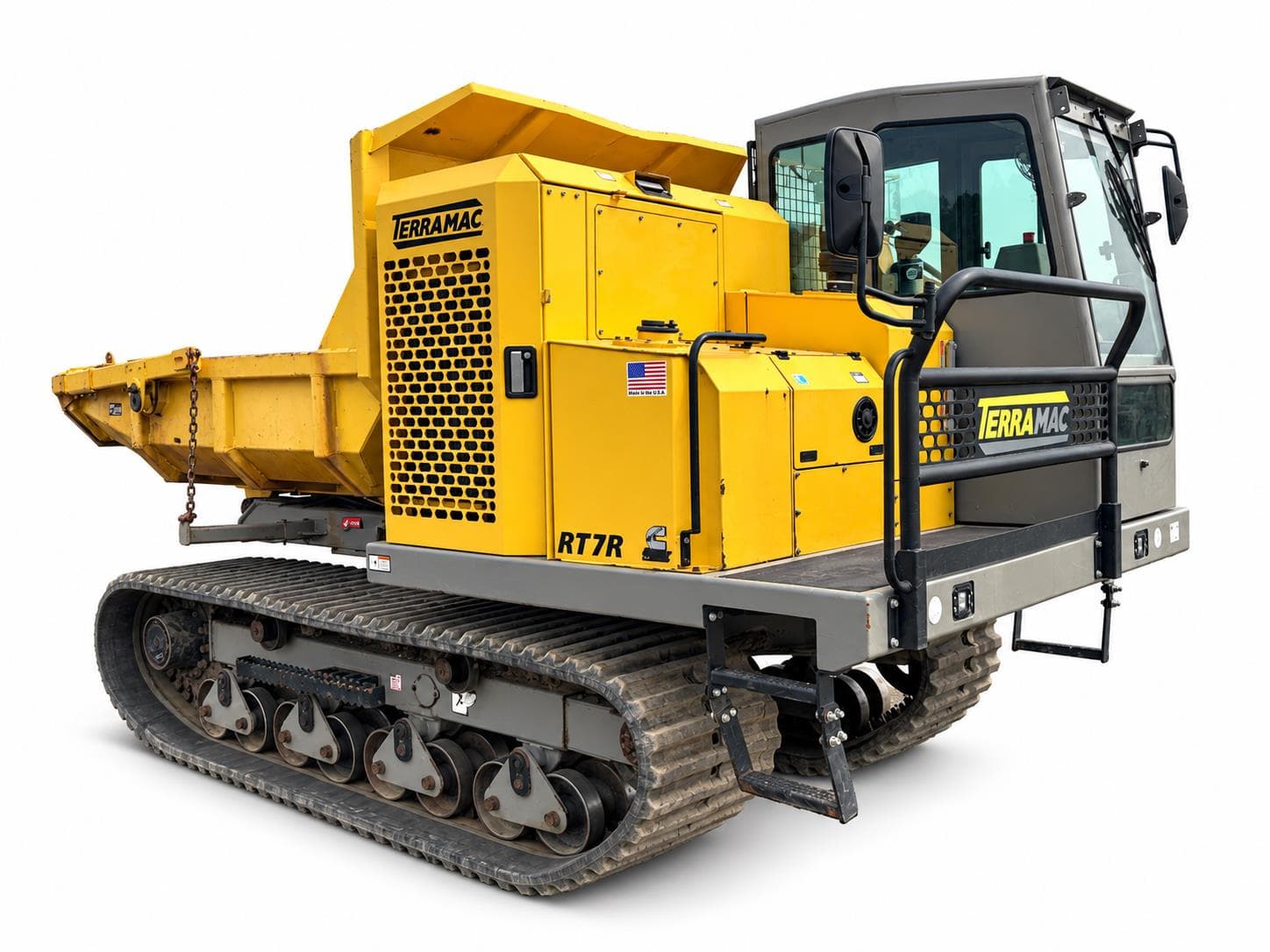

Terramac RT7R Rotating Rubber Track Crawler Carrier – 14,000 lb Capacity

Move dirt, rock, gravel, mulch, and debris across ground a wheeled dump truck can't handle. The Terramac RT7R is a compact rubber track dump carrier with an upper frame that rotates a full 360 degrees, so you can dump from any angle, even while driving, without spinning the tracks and tearing up the site. Low ground pressure lets it work on wet, soft, steep, or finished ground with minimal damage, making it a strong fit for site work, utility and pipeline jobs, landscaping, vineyard and orchard work, creek and erosion-control projects, and demolition cleanup.

Key Specifications

- Carrying capacity: 14,000 lb (7 tons)

- Upper frame rotation: 360°

- Dump bed: 8 ft 8 in long x 6 ft 8 in wide, 22 in sides, 60° dump angle

- Bed loading height over side: 6 ft 5 in

- Ground pressure: 5.5 psi loaded / 3.5 psi empty

- Tracks: 27.5 in rubber tracks, zero-turn steering

- Gradeability: 58% (30°)

- Travel speed: 3.3 mph (1st gear) / 6.7 mph (2nd gear)

- Engine: 165 hp Cummins B4.5 diesel, Tier 4 Final

- Fuel capacity: 40 gallons

- Auxiliary hydraulics: 14 gpm @ 2,500 psi

- Dimensions: 17 ft 3 in long x 8 ft 1 in wide x 9 ft 9 in tall

- Ground clearance: 20 in

- Machine weight: Approx. 23,700 lb with bed

- Cab: Enclosed cab with heat & A/C

- Bed: High lift-gate bed

Before You Rent

- Transport: At nearly 24,000 lb, the RT7R requires a properly rated truck and trailer. A combination this heavy typically requires a CDL. Aaction Rents delivery is available.

- Site access: The machine is 8 ft 1 in wide and 9 ft 9 in tall. Measure gates, paths, and overhead clearances before delivery.

- Loading: With a 6 ft 5 in side loading height, plan to load with an excavator, loader, or skid steer.

- Operation: Operators should be trained on crawler carrier controls and rotating-frame dumping before use.
