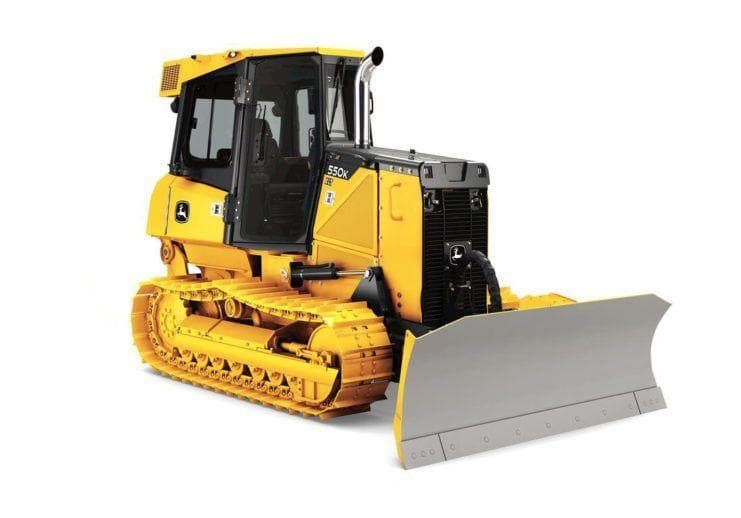

JOHN DEERE

550K

Dozer:

Angled Width: 107.0 in

Dozer Capacity: 2.6 cu yd

Dozer Height: 38.0 in

Dozer Lift Height: 30.0 in

Dozer Type: PAT

Dozer Width: 114.0 in

Maximum Tilt: 16.0 in

Engine:

Displacement: 276.0 cid

Engine: PowerTech PWX 4045

Engine Manufacturer: John Deere

Engine Torque @RPM: 276.0 ft-lb

Horsepower: 85.0 hp

Power Mode: Diesel

Rated RPM: 2200.0 rpm

Final Drive:

Final Drive Type: Triple Reduction

Fluid Capacities:

Fuel Tank Capacity: 62.5 gal

Hydraulics:

Hydraulic Pump: Gear

Hydraulic Pump Flow: 15.0 gal/min

Relief Pressure: 3000.0 psi

Operator Environment:

Operator Protection: ROPS/FOPS

Transmission:

Number of Speeds: 2F/2R

Transmission: Hydrostatic

Travel Speed F/R (1st): 5/5

Travel Speed F/R (2nd): 6/6

Undercarriage:

Ground Contact Area: 3329.0 sq in

Ground Pressure: 5.8 psi

No. of Lower/Track Rollers: 7.0

Number of Shoes per Track: 40.0

Track Frame: 7-Roller

Track Gauge: 61.0 in

Track Pitch: 6.3 in

Track Shoe Width: 18.0 in

Weights & Dimensions:

Digging Depth: 19.0 in

Ground Clearance: 15.3 in

Height to Top of Cab: 9.0 ft

Length of Track on Ground: 92.0 in

Overall Length w/Dozer: 166.0 in

Total Operating Weight: 19599.0 lbs
